How do I know whether the Helios Pro fits my space?

The published dimensions are 232.30" × 88.60" × 59.00". Bring measurements and photos of the location and access route. The showroom will check the current manufacturer guide, base, clearance and delivery path with you.

What setup does this swim spa require?

The published electrical information is 2 x 40 Amp / 50 Amp / 240V. Final utility, ventilation, drainage and site requirements depend on the selected configuration. Confirm the current installation guide before construction and use qualified trades where required.

How does delivery work for the Helios Pro?

Inside each showroom's delivery area, delivery and setup are free at Arlington, Flower Mound, Richardson and San Antonio; Austin prices delivery by product. The showroom plans the access route and the base with you, and your written quote lists what is included.

What should I confirm about capacity, care and warranty?

This model lists 5 for capacity. Ask the showroom to confirm the selected configuration, care routine, included accessories and the current manufacturer warranty in writing before purchase.

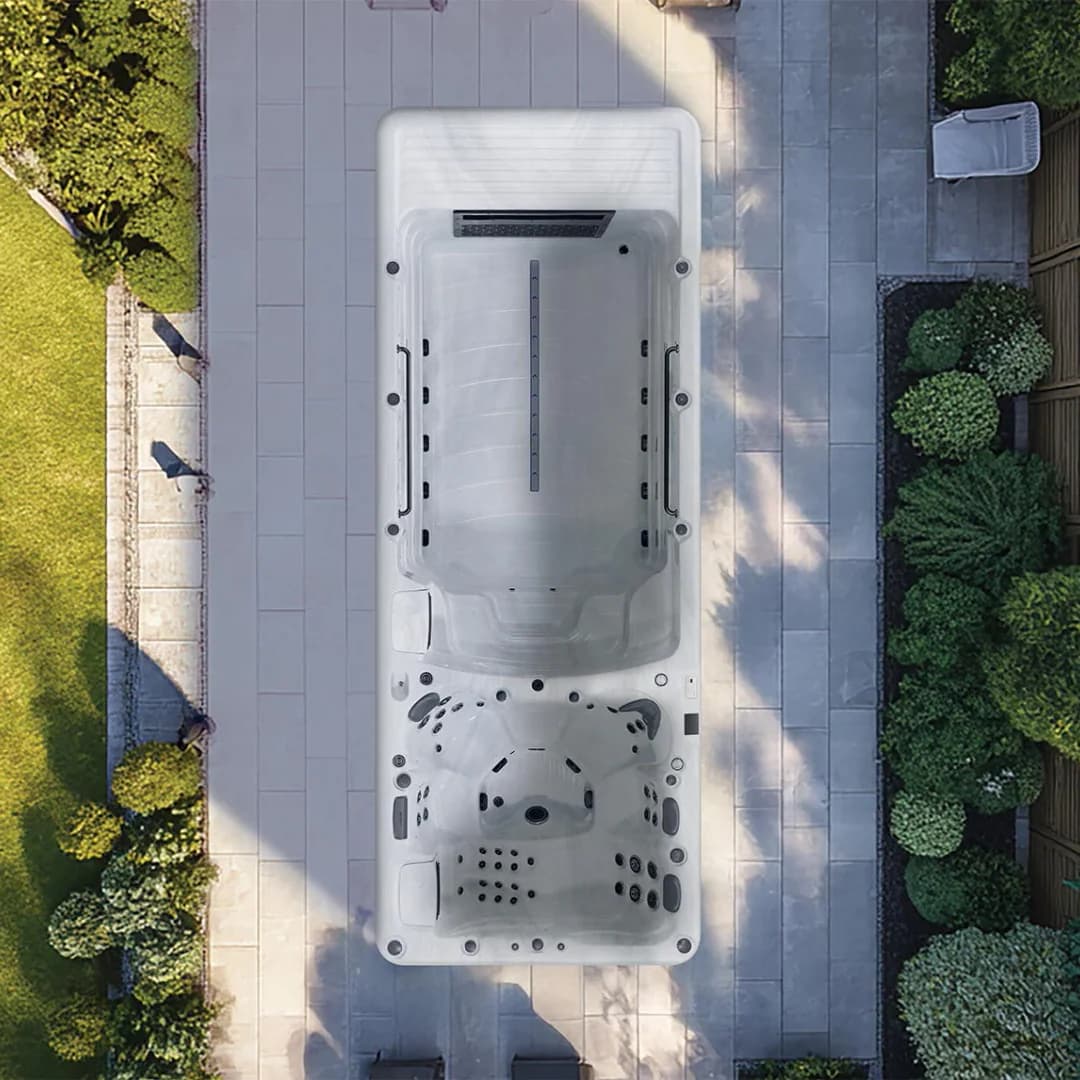

Helios Pro Swim Spa

Name: Helios Pro
Brand: Platinum Spas

A turbine swim spa with 4 fixed seats and one lounger across separate swim and spa zones.

See Dealer Price Call Store

232.3"Length

TurbineSwim current

4Spa seats

2,509 galWater capacity

Authorized Dealer

Ask About a Wet Test

Delivery Planning

Manufacturer Warranty

Google 4.8 / 5 Arlington177 reviews · checked 2026-10-04 · See on Google

Complete model guide

Everything to know about the Helios Pro.

Model details, options and planning in one place.

The Helios Pro combines a turbine swim current with a separate spa area of four fixed seats and one lounger. It suits a household that wants a dedicated swim lane without giving up substantial spa seating. Review the two-area layout, cover access and the selected electrical package before planning the base.

Helios Pro is available through Southern Leisure showrooms in Arlington, Flower Mound, Richardson, Austin and San Antonio. Ask a local product specialist about display models, delivery and current dealer pricing.

Lounger Seat

Included with this model.

Adjustable Jets

Included with this model.

Massage Jets

Included with this model.

Ozonator

Included with this model.

Touchscreen Control

Included with this model.

Sound System

Included with this model.

Laminars (Water Ropes)

Included with this model.

Swim Jets

Included with this model.

Wireless Connectivity

Included with this model.

Platinum Superior-Zone ozone purification

Fitted as standard on every model. Superior-Zone injects ozone during filtration to support water clarity and reduce sanitizer demand; ozone does not replace the sanitizer needed for water care.

Platinum Premium Shield insulation

Shell foam, a reflective heat-lock layer and a ThermoFoil perimeter and base wrap help retain the selected water temperature between sessions. Cover condition, placement and local weather still affect heat retention and running cost.

Balboa control system

Platinum Spas uses Balboa control hardware across the range. Panel design and Wi-Fi availability vary by model; confirm the controls and connectivity on the unit quoted with your showroom.

Platinum Illumination LED lighting

All models carry multi-colored LED lights controlled with a push of a button - hold one color, or let the mood setting fade softly between colors.

Keep equipment access open

Platinum's swim-spa equipment is reached by removing side panels. Ask which cabinet sides need access, then keep those panels reachable after decking or landscaping.

Plan for the filled load

Use this model's published dimensions and filled weight to have a qualified local installer plan a level support and drainage approach for the chosen site.

Confirm the delivery route

Share photos and measurements of the street-to-site route, turns, gates and overhead obstacles. Your showroom can confirm placement equipment and included delivery work in writing.

Scope the electrical connection

Check this model's manufacturer-listed power supply in Specifications. A licensed local electrician should confirm the circuit and connection for the actual unit supplied.

Manufacturer warranty coverage

Lifetime warranty on the shell structure

Published warranty terms

Up to 3 years on parts

Swim, train and recover at home.

A swim spa gives you a current to swim against and warm water to rest in. Here is what water exercise can do for you.

Easy on your joints
Water holds up your body weight, so you can move and exercise longer with less strain on your joints.
Source: CDC ↗
Moves for arthritis
Water exercise can help people with arthritis move their joints more easily and may ease pain.
Source: Arthritis Foundation ↗
Builds heart fitness
Swimming-style workouts done often can build heart and lung fitness over time.
Source: Arthritis Foundation ↗
Lifts your mood
Many people enjoy water workouts more than land exercise and feel better after.
Source: CDC ↗

If you have a heart condition or are pregnant, check with your doctor before starting a new workout plan. CDC ↗

Watch

See the Platinum range in motion.

This Platinum Spas film shows the whole Platinum range, the collection the Helios Pro belongs to. Seats, jets and features vary by model.

More about Platinum Spas

Is the Helios Pro the right size for your space?

Same build quality. Different size, seating and features.

Specification	Helios Pro	Eros Pro	Zelus Pro	Titan
Type	Swim Spas	Swim Spas	Swim Spas	Swim Spas
Manufacturer-listed power supply	2 x 40 Amp / 50 Amp / 240V	2 x 50 Amp / 240V	2 x 50 Amp / 220V	60 Amp / 240V
Jets	50 (spec table) / 53 (model detail)	19	39	38
Number of Pumps	4	2	2	5
Total Pump Horsepower	4.35 HP	3.35 HP	3.35 HP	10.35 HP
Total Brake Horsepower	10.00 BHP	6.00 BHP	6.00 BHP	22.00 BHP
Holds	2509.00 Gallons	1532.00 Gallons	2324.00 Gallons	1109.00 Gallons
Filled Weight	24195 Pounds	14903 Pounds	22443 Pounds	11287 Pounds
Link	This model	View Eros Pro →	View Zelus Pro →	View Titan →

Similar Swim Spas

From the showroom floor to your first swim.

Five clear steps. We plan the space, access and handoff with you.Choose a showroom

Step 1
Try it in a showroom
Ask your nearest Southern Leisure showroom whether the Helios Pro is available to view. A specialist can compare the features, finishes and current options with you.
Step 2
Share photos of the space
Send clear photos of the proposed location and the path from the street. We use them to flag access, clearance and placement questions before the order is finalized.
Step 3
Prepare utilities
The published electrical information is 2 x 40 Amp / 50 Amp / 240V. Confirm it against the current installation guide and use a qualified trade professional for the final connection.
Step 4
Coordinate delivery and placement
Once the site and access are approved, the team coordinates delivery. Your written quote explains the included work, any access equipment and what must be ready before arrival.
Step 5
Fill, start and learn the routine
Your Southern Leisure team walks you through the first fill, controls and care system for the Helios Pro. You leave with a simple ownership plan and a local team to call.

Before you choose the Helios Pro.

Clear answers for planning the product, site and delivery.

Yes. Ask Arlington, Flower Mound, Richardson, Austin or San Antonio whether this model or a close comparison is currently on display. Showroom selection changes, so confirm before you travel.
